Model No.

AR-99

Description

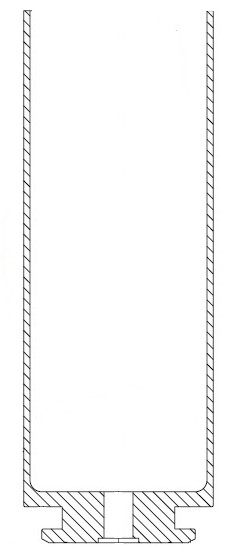

ARWEN Launching Cup Cartridge

Caliber

37mm ARWEN

Cartridge Type

Rebated Cartridge Case

Cartridge Material

Aluminium, Black Anodized

Outside Diameter

40mm

Overall Height

110mm

Overall Weight

67g ±1g

Projectile Color

N/A

Projectile Weight

N/A

Net Explosive Quantity

1.4g

Muzzle Velocity

N/A

Kinetic Energy at Muzzle

N/A

Range

50-75m depending on barrel angel and type of projectile

Compatibility

All 37mm ARWEN Compatible Weapon Systems

Waterproof

Lacquer coated primer, and sealed propellant cartridge

Note:

Launching cup adapter required

UN Number

UN0014

Proper Shipping Name

Cartridges for Weapons, Blank

Hazard Class

1.4S

Labels Required

Explosive, 1.4S

Quantity Per Package

12 Cartridges (2-4 boxes in master box)

75 Cartridges in metal drum

Total Package Weight

Box: 2.27kg (12 Cartridges)

Drum: 14.9kg (75 Cartridges)

Package Type

Fiberboard Boxes or Metal Drum with Lever Lock Lid meeting UN Specifications

Package Dimensions

Box: 16 x 24 x 19.5cm (12 Cartridges)

Drum: 35cm x 31cm (5 gal.)

US DoT Ref. No.

EX2017080242
