Model No.

AR-6-OC

Description

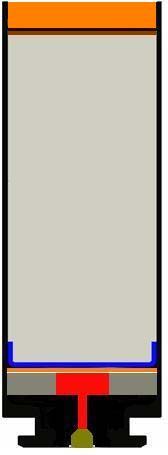

ARWEN Muzzle Blast – OC Irritant Powder

Caliber

37mm ARWEN

Cartridge Type

Rebated Cartridge Case

Cartridge Material

Aluminium, Black Anodized

Outside Diameter

40mm

Overall Height

110mm

Overall Weight

110g ±21g

Projectile Color

White Powder

Projectile Weight

50g ± 2g Powder

Net Explosive Quantity

1.4g

Muzzle Velocity

N/A

Kinetic Energy at Muzzle

N/A

Range

0~15m

Irritant Agent

OC Blend – 10% OC (oleoresin capsicum)

Net Irritant Agent

30g

Compatibility

All 37mm ARWEN Compatible Weapon Systems

Waterproof

Lacquer coated primer, and sealed propellant cartridge

UN Number

UN0301

Proper Shipping Name

Ammunition, Tear Producing

Hazard Class

1.4G (6.1) (8)

Labels Required

Explosive, 1.4G; Toxic, Corrosive

Quantity Per Package

12 Cartridges (2-4 boxes in master box)

75 Cartridges in metal drum

Total Package Weight

Box: 2.27kg (12 Cartridges)

Drum: 14.9kg (75 Cartridges)

Package Type

Fiberboard Boxes or Metal Drum with Lever Lock Lid meeting UN Specifications

Package Dimensions

Box: 16 x 24 x 19.5cm (12 Cartridges)

Drum: 35cm x 31cm (5 gal.)

US DoT Ref. No.

EX2016040328
