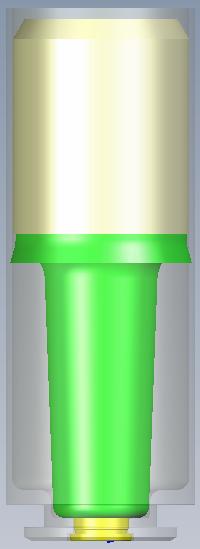

Model No.

AR-5-OC

Description

ARWEN Barricade Penetrating, Standard Energy OC Irritant, Powder

Caliber

37mm ARWEN

Cartridge Type

Rebated Cartridge Case

Cartridge Material

Aluminium, Black Anodized

Outside Diameter

40mm

Overall Height

110mm

Overall Weight

123g ±2g

Projectile Material

Composite Plastic with Blue Frangible Disc

Projectile Weight

56g ± 1g

Net Explosive Quantity

1.3g

Muzzle Velocity

139m/s (456 fps)

Range

80m

Discharge Time

Instantaneous, Upon Impact

Irritant Agent

OC Blend – 10% OC (oleoresin capsicum)

Net Irritant Agent

6g ±1g

Compatibility

All 37mm ARWEN Compatible Weapon Systems

UN Number

UN0301

Proper Shipping Name

Ammunition, Tear Producing

Hazard Class

1.4G (6.1) (8)

Labels Required

Explosive, 1.4G; Toxic, Corrosive

Quantity Per Package

12 Cartridges (2-4 boxes in master box)

75 Cartridges in metal drum

Total Package Weight

Box: 2.27kg (12 Cartridges)

Drum: 14.9kg (75 Cartridges)

Package Type

Fiberboard Boxes or Metal Drum with Lever Lock Lid meeting UN Specifications

Package Dimensions

Box: 16 x 24 x 19.5cm (12 Cartridges)

Drum: 35cm x 31cm (5 gal.)

US DoT Ref. No.

EX2016040328
