Model No.

AR-4-R

Description

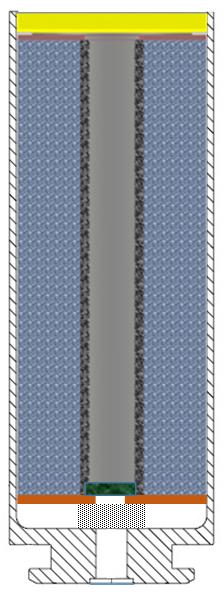

ARWEN Pyrotechnic Red Smoke, Standard Energy

Caliber

37mm ARWEN

Cartridge Type

Rebated Cartridge Case

Cartridge Material

Aluminium, Black Anodized

Outside Diameter

40mm

Overall Height

110mm

Overall Weight

173g ±2g

Projectile Material

Aluminum Canister containing Pyrotechnic compound

Projectile Weight

102g ± 1g

Net Explosive Quantity

2.3g

Range

50~75 m depending on Barrel Angel

Discharge Time

2.5~3 minutes

Irritant Agent

N/A – Safe Smoke

Net Irritant Agent

N/A

Compatibility

All 37mm ARWEN Compatible Weapon Systems

UN Number

UN0303

Proper Shipping Name

Ammunition, Smoke

Hazard Class

1.4G (8)

Labels Required

Explosive, 1.4G; Corrosive

Quantity Per Package

12 Cartridges (2-4 boxes in master box)

75 Cartridges in metal drum

Total Package Weight

Box: 2.27kg (12 Cartridges)

Drum: 14.9kg (75 Cartridges)

Package Type

Fiberboard Boxes or Metal Drum with Lever Lock Lid meeting UN Specifications

Package Dimensions

Box: 16 x 24 x 19.5cm (12 Cartridges)

Drum: 35cm x 31cm (5 gal.)

US DoT Ref. No.

EX2016040329
