Model No.

AR-3-OC

Description

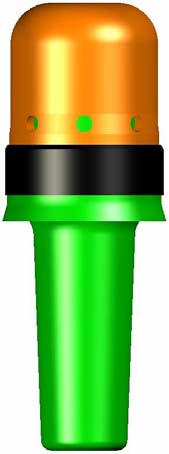

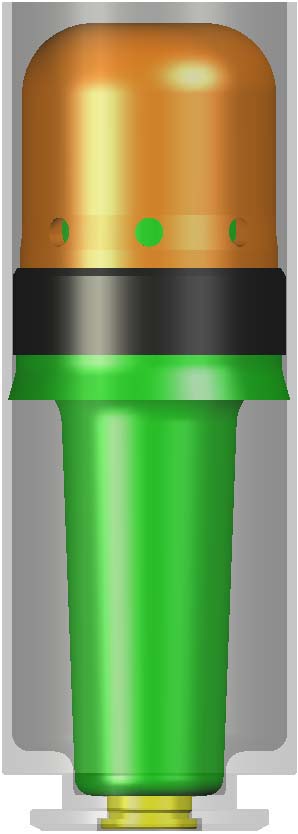

ARWEN Valve Impact Baton, Standard Energy OC Irritant

Caliber

37mm ARWEN

Cartridge Type

Rebated Cartridge Case

Cartridge Material

Aluminium, Black Anodized

Outside Diameter

40mm

Overall Height

110mm

Overall Weight

145g ± 1g

Projectile Weight

78g ± 1g

Projectile Color

Orange Valve Cap – Green Baton Base

Net Explosive Quantity

0.61g

Muzzle Velocity

74m/s (242fps) Average – ARWEN 37 Barrel

Kinetic Energy at Muzzle

219J (158ft-lbf)

Range

100m

Compatibility

All 37mm ARWEN compatible Weapon Systems

Irritant Agent

OC Blend – 10% OC (oleoresin Capsicum)

Net Irritant Agent

4 ± 1g

Waterproof

Lacquer coated primer, and sealed propellant cartridge

UN Number

UN0301

Proper Shipping Name

Ammunition, Tear-Producing

Hazard Class

1.4G (6.1) (8)

Labels Required

Explosive, 1.4G, Toxic, Corrosive

Quantity Per Package

12 Cartridges (2-4 boxes in master box)

75 Cartridges in metal drum

Total Package Weight

Box: 2.04kg (12 Cartridges)

Drum: 13.6kg (75 Cartridges)

Package Type

Fiberboard Boxes or Metal Drum with Lever Lock Lid meeting UN Specifications

Package Dimensions

Box: 16 x 24 x 19.5cm (12 Cartridges)

Drum: 35cm x 31cm (5 gal.)

US DoT Ref. No.

EX201604328
