Model No.

AR-1-AIR

Description

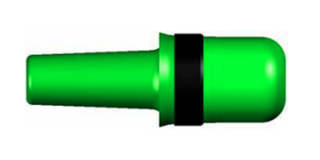

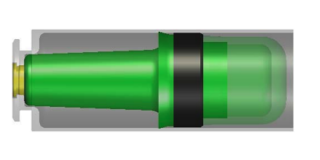

ARWEN AIR Impact Baton, Standard Energy

Caliber

37mm ARWEN

Cartridge Type

Rebated Cartridge Case

Cartridge Material

Aluminium, Black Anodized

Outside Diameter

40mm

Overall Height

110mm

Overall Weight

140g ± 2g

Projectile Weight

78g ± 1g

Projectile Color

Bright Green

Net Explosive Quantity

0.61g

Muzzle Velocity

74m/s (242fps) Average – ARWEN 37 Barrel

Kinetic Energy at Muzzle

219J (158ft-lbf)

Range

100m

Compatibility

All 37mm ARWEN compatible Weapon Systems

Waterproof

Lacquer coated primer, and sealed propellant cartridge

UN Number

UN0012

Proper Shipping Name

Cartridges for Weapons, Inert Projectile

Labels Required

Explosive, 1.4S

Quantity Per Package

12 Cartridges (2-4 boxes in master box)

75 Cartridges in metal drum

Total Package Weight

Box: 2.04kg (12 Cartridges)

Drum: 13.6kg (75 Cartridges)

Package Type

Lock Lid meeting UN Specifications

Package Dimensions

Box: 16 x 24 x 19.5cm (12 Cartridges)

Drum: 35cm x 31cm (5 gal.)

US DoT Ref. No.

EX201604326
