ARWEN Less Lethal
Product Specification Sheet
Model No.
AR-1-AIR-RE
Description

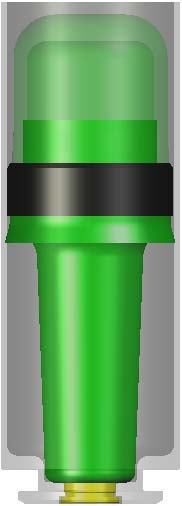

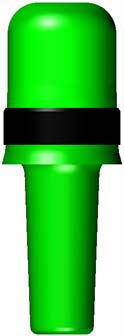

ARWEN AIR Impact Baton, Reduced Energy
Caliber
37mm ARWEN
Cartridge Type
Rebated Cartridge Case
Cartridge Material
Aluminium, Black Anodized
Outside Diameter
40mm
Overall Height
110mm
Overall Weight
140g ± 2g
Projectile Weight
78g ± 1g
Projectile Color
Bright Green
Net Explosive Quantity
0.41g
Muzzle Velocity
50m/s (136fps) Average – ARWEN 37 Barrel
Kinetic Energy at Muzzle
100J (74ft-lbf)
Range
50m
Compatibility
All 37mm ARWEN compatible Weapon Systems
Waterproof
Lacquer coated primer, and sealed propellant cartridge
UN Number
UN0012
Proper Shipping Name
Cartridges for Weapons, Inert Projectile
Labels Required
Explosive, 1.4S
Quantity Per Package
12 Cartridges (2-4 boxes in master box)
75 Cartridges in metal drum
Total Package Weight
Box: 2.04kg (12 Cartridges)
Drum: 13.6kg (75 Cartridges)
Package Type
Lock Lid meeting UN Specifications
Package Dimensions
Box: 16 x 24 x 19.5cm (12 Cartridges)
Drum: 35cm x 31cm (5 gal.)
US DoT Ref. No.
EX201604326
All specifications are average and are subject to change without notice.
