The ARWEN 37 and its siblings are the first multi-purpose, multi-shot weapon system to combine light weight, high accuracy and the ability to fire up to 5 shots before reloading.

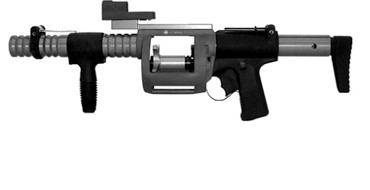

The ARWEN 37 weapon is light: 3.11kg (6lb, 14oz) unloaded or 3.83kg (8lb, 4oz) loaded with 5 AR-1 baton rounds; finished in matt black and, because of its design, is very safe. It is very easy to use, being suitable for right or left-handed operators of any height or build. Exposed parts are made of anodized aluminum alloy and plastics, which are unaffected by damp environments; where steel parts are necessary, they are in shielded positions where they can be kept lubricated and protected from rust. Routine stripping, cleaning, lubrication and reassembly are easily done with the simple tools, brushes and cloths; cleaning brushes and lubricants can be provided.
A carrying sling is provided as standard and an optional carrying case can be supplied with each weapon. ARWEN 37 is easily loaded from a cartridge belt carrying two detachable fasteners which are compatible with most military style webbing. The special style of ARWEN 37 ammunition makes an important contribution to its weight and space-saving design. The cartridge case safely contains the propellant gases without the support of a chamber: This feature contributes greatly to the simplicity of the system. When a round has been fired, the spent case is ejected to the right. Cartridge cases and batons used for training can be recovered and refurbished for re-use, keeping down training costs. 37mm ARWEN projectiles are spun by the rifled barrel, so that they are extremely accurate.
How ARWEN 37 Offers Security in the Less Lethal Role
ARWEN 37 is the first less lethal weapon to combine lightness, high accuracy and the ability to fire up to 5 shots without reloading. The ARWEN 37 has the option to quickly change the ammunition type of the first round to be fired. This offers the operator a choice of tactics and a level of response unmatched by any other system. The ARWEN 37 provides you with the most effective means of less lethal projectile deployment.
ARWEN 37 Mark III Technical Details
Model | ARWEN 37 Mark III |
Calibre | 37mm ARWEN |
Cartridge | Proprietary 37mm ARWEN Rebated Cartridge |
Ammunition Capacity | 5 Rounds – Rapidly Reloadable |
Type of Action | Rotary Magazine |
Barrel | 285mm (11.25 inch) |
Rifling | 5 Lands / 5 Grooves |
Rate of Twist | 1 in 540mm (1 in 21.3 inch) Right Hand Twist |
Overall Length | 710-795mm (28-31.25 inch) |
Weight Unloaded | 3.11kg (6lb,14oz) |
Weight Loaded with 5 AR-1 rounds |
3.83kg (8lb, 4oz) |
Weight Unloaded with A37AM4 & Trijicon RX01 |
3.46kg (7lb, 4oz) |
Colour | Black |
Download: ARWEN 37 Specification Sheet
The ARWEN 37 and its siblings are the first multi-purpose, multi-shot weapon system to combine light weight, high accuracy and the ability to fire up to 5 shots before reloading.

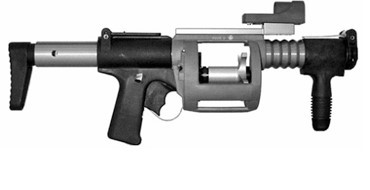

The ARWEN 37T weapon is light: 2.98kg (6lb, 9oz) unloaded or 3.61kg (7lb, 15oz) loaded with 5 AR-1 baton rounds; finished in matt black and, because of its design, is very safe. It is very easy to use, being suitable for right or left-handed operators of any height or build. Exposed parts are made of anodized aluminum alloy and plastics, which are unaffected by damp environments; where steel parts are necessary, they are in shielded positions where they can be kept lubricated and protected from rust. Routine stripping, cleaning, lubrication and reassembly are easily done with the simple tools, brushes and cloths; cleaning brushes and lubricants can be provided.
A carrying sling is provided as standard and an optional carrying case can be supplied with each weapon. ARWEN 37T is easily loaded from a cartridge belt carrying two detachable fasteners which are compatible with most military style webbing. The special style of 37mm ARWEN ammunition makes an important contribution to its weight and space-saving design. The cartridge case safely contains the propellant gases without the support of a chamber: This feature contributes greatly to the simplicity of the system. When a round has been fired, the spent case is ejected to the right. Cartridge cases and batons used for training can be recovered and refurbished for re-use, keeping down training costs. 37mm ARWEN projectiles are spun by the rifled barrel, so that they are extremely accurate.
How ARWEN 37T Offers Security in the Less Lethal Role
ARWEN 37T is the first less lethal tactical weapon to combine lightness, high accuracy and the ability to fire up to 5 shots without reloading. The ARWEN 37T has the option to quickly change the ammunition type of the first round to be fired. This offers the operator a choice of tactics and a level of response unmatched by any other system. The ARWEN 37T provides you with the most effective means of less lethal projectile deployment in tactical situations.
ARWEN 37T Mark III – Tactical Technical Details
Model | ARWEN 37T Mark III – Tactical |
Calibre | 37mm ARWEN |
Cartridge | Proprietary 37mm ARWEN Rebated Cartridge |
Ammunition Capacity | 5 Rounds – Rapidly Reloadable |
Type of Action | Rotary Magazine |
Barrel | 185mm (7.25 inch) |
Rifling | 5 Lands / 5 Grooves |
Rate of Twist | 1 in 540mm (1 in 21.3 inch) Right Hand Twist |
Overall Length | 640-692mm (24-27.25 inch) |
Weight Unloaded | 2.9kg (6lb,9oz) |
Weight Loaded with 5 AR-1 rounds |
3.61kg (7lb, 15oz) |
Weight Unloaded with A37AM4 & Trijicon RX01 |
3.31kg (7lb, 5oz) |
Colour | Black |
Download: ARWEN 37T Specification Sheet
The ARWEN ACE and its siblings the ARWEN ACE Tactical and the ARWEN ACE Pistol are the first cost effective, multi-purpose, single-shot weapon systems to combine light weight, and high accuracy, with open breech for fast rate of fire.

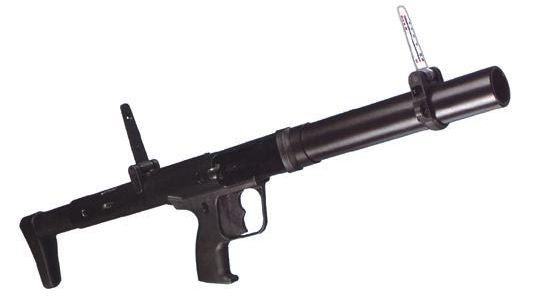

The ARWEN ACE weapon is light: 2.07kg (4lb, 9oz) unloaded or 2.18kg (4lb, 13oz) loaded with 1 AR-1 baton round; finished in matt black and, because of its design, is very safe. It is very easy to use, being suitable for right or left-handed operators of any height or build. Exposed parts are made of anodized aluminum alloy and plastics, which are unaffected by damp environments; where steel parts are necessary, they are in shielded positions where they can be kept lubricated and protected from rust. Routine stripping, cleaning, lubrication and reassembly are easily done with the simple tools, brushes and cloths; cleaning brushes and lubricants can be provided.
A carrying sling is provided as standard and an optional carrying case can be supplied with each weapon. The special style of ARWEN ammunition makes an important contribution to its weight and space-saving design. The cartridge case safely contains the propellant gases without the support of a chamber. This feature contributes greatly to the simplicity of the system. When a round has been fired, the spent case is ejected to the right. Baton rounds used for training can be recovered and refurbished for re-use, keeping down training costs. ARWEN projectiles are spun by the rifled barrel, so that they are extremely accurate.
How ARWEN Offers Security in the Less Lethal Role
ARWEN is the first less lethal weapon to combine lightness, high accuracy and open breech for fast rate of fire. The ARWEN ACE has the option to quickly change the ammunition type of the round to be fired. This offers the operator a choice of tactics and a level of response unmatched by any other system.
ARWEN ACE Technical Details
Model | ARWEN ACE |
Calibre | 37mm ARWEN |
Cartridge | Proprietary 37mm ARWEN Rebated Cartridge |
Ammunition Capacity | 1 Round – Rapidly Reloadable |
Type of Action | Single Shot, Auto-Ejection |
Barrel | 285mm (11.25 inch) |
Rifling | 5 Lands / 5 Grooves |
Rate of Twist | 1 in 540mm (1 in 21.3 inch) Right Hand Twist |
Overall Length | 730-860mm (29-34 inch) |
Weight Unloaded | 2.07kg (4lb, 9oz) |
Weight Loaded with 1 AR-1 round |
2.18kg (4lb, 13oz) |
Colour | Black |
Download: ARWEN ACE Specification Sheet
The ARWEN ACE T “Tactical” and its siblings the ARWEN ACE and the ARWEN ACE P – “Pistol” are the first cost effective, multi-purpose, single-shot weapon systems to combine light weight, and high accuracy, with open breech for fast rate of fire.

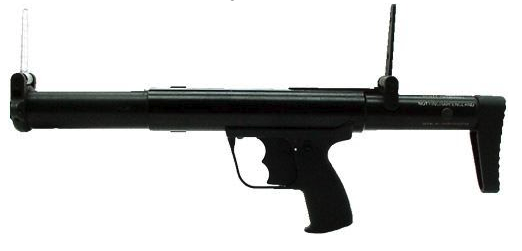

The ARWEN ACE T – Tactical weapon is light: 1.81kg (4lb) unloaded or 1.95kg (4lb, 5oz) loaded with 1 AR-1 baton round; finished in matt black and, because of its design, is very safe. It is very easy to use, being suitable for right or left-handed operators of any height or build. Exposed parts are made of anodized aluminum alloy and plastics, which are unaffected by damp environments; where steel parts are necessary, they are in shielded positions where they can be kept lubricated and protected from rust. Routine stripping, cleaning, lubrication and reassembly are easily done with the simple tools, brushes and cloths; cleaning brushes and lubricants can be provided.
A carrying sling is provided as standard and an optional carrying case can be supplied with each weapon. The special style of ARWEN ammunition makes an important contribution to its weight and space-saving design. The cartridge case safely contains the propellant gases without the support of a chamber. This feature contributes greatly to the simplicity of the system. When a round has been fired, the spent case is ejected to the right. Baton rounds used for training can be recovered and refurbished for re-use, keeping down training costs. ARWEN projectiles are spun by the rifled barrel, so that they are extremely accurate.
How ARWEN Offers Security in the Less Lethal Role
ARWEN is the first less lethal weapon to combine lightness, high accuracy and open breech for fast rate of fire. The ARWEN ACE T – Tactical has the option to quickly change the ammunition type of the round to be fired. This offers the operator a choice of tactics and a level of response unmatched by any other system.
ARWEN ACE T – “Tactical” Technical Details
Model | ARWEN ACE T – “Tactical” |
Calibre | 37mm ARWEN |
Cartridge | Proprietary 37mm ARWEN Rebated Cartridge |
Ammunition Capacity | 1 Round – Rapidly Reloadable |
Type of Action | Single Shot, Auto-Ejection |
Barrel | 185mm (7.25 inch) |
Rifling | 5 Lands / 5 Grooves |
Rate of Twist | 1 in 540mm (1 in 21.3 inch) Right Hand Twist |
Overall Length | 585-665mm (23-26.25 inch) |
Weight Unloaded | 1.81kg (4lb) |
Weight Loaded with 1 AR-1 round |
1.95kg (4lb, 5oz) |
Colour | Black |
